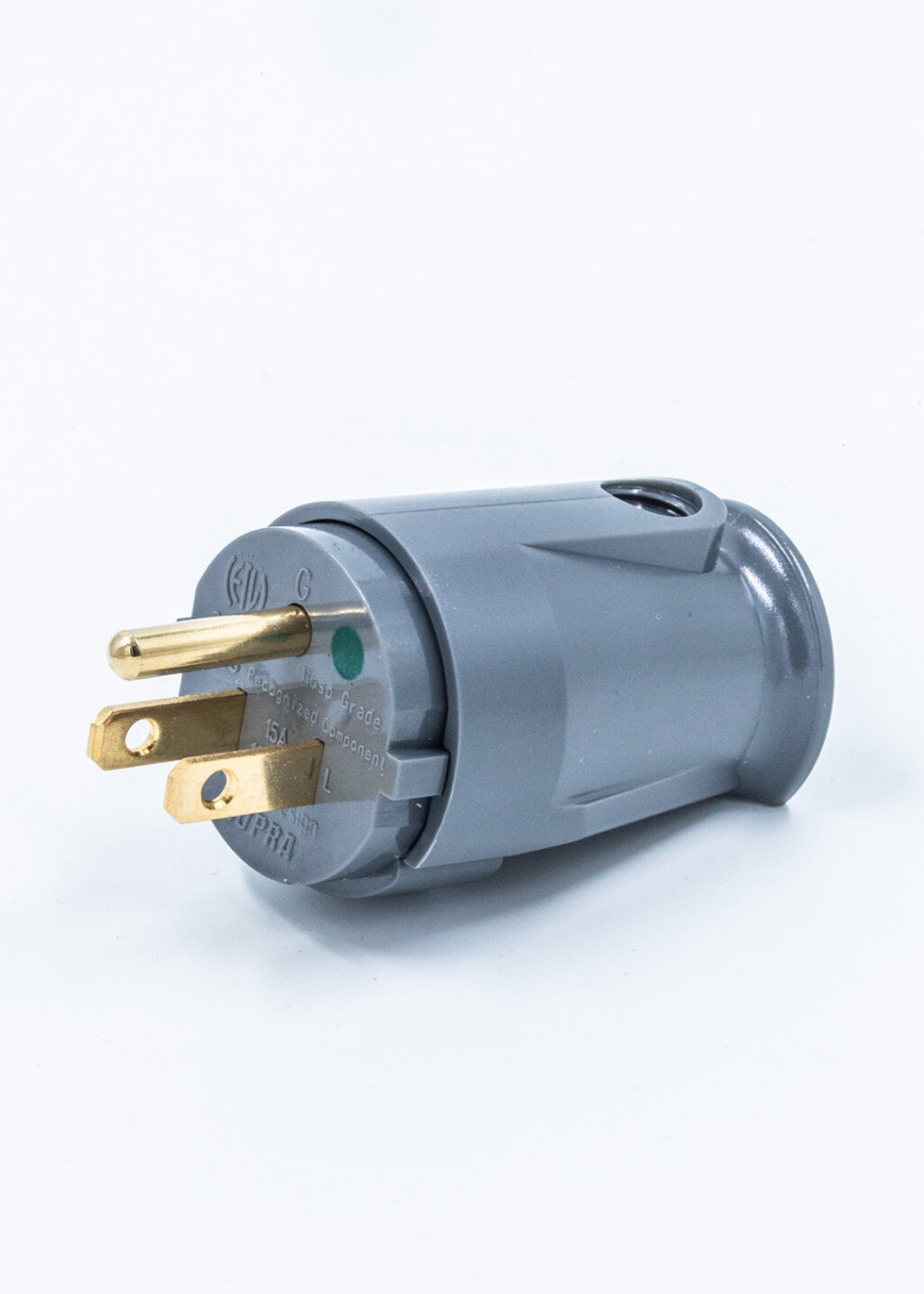

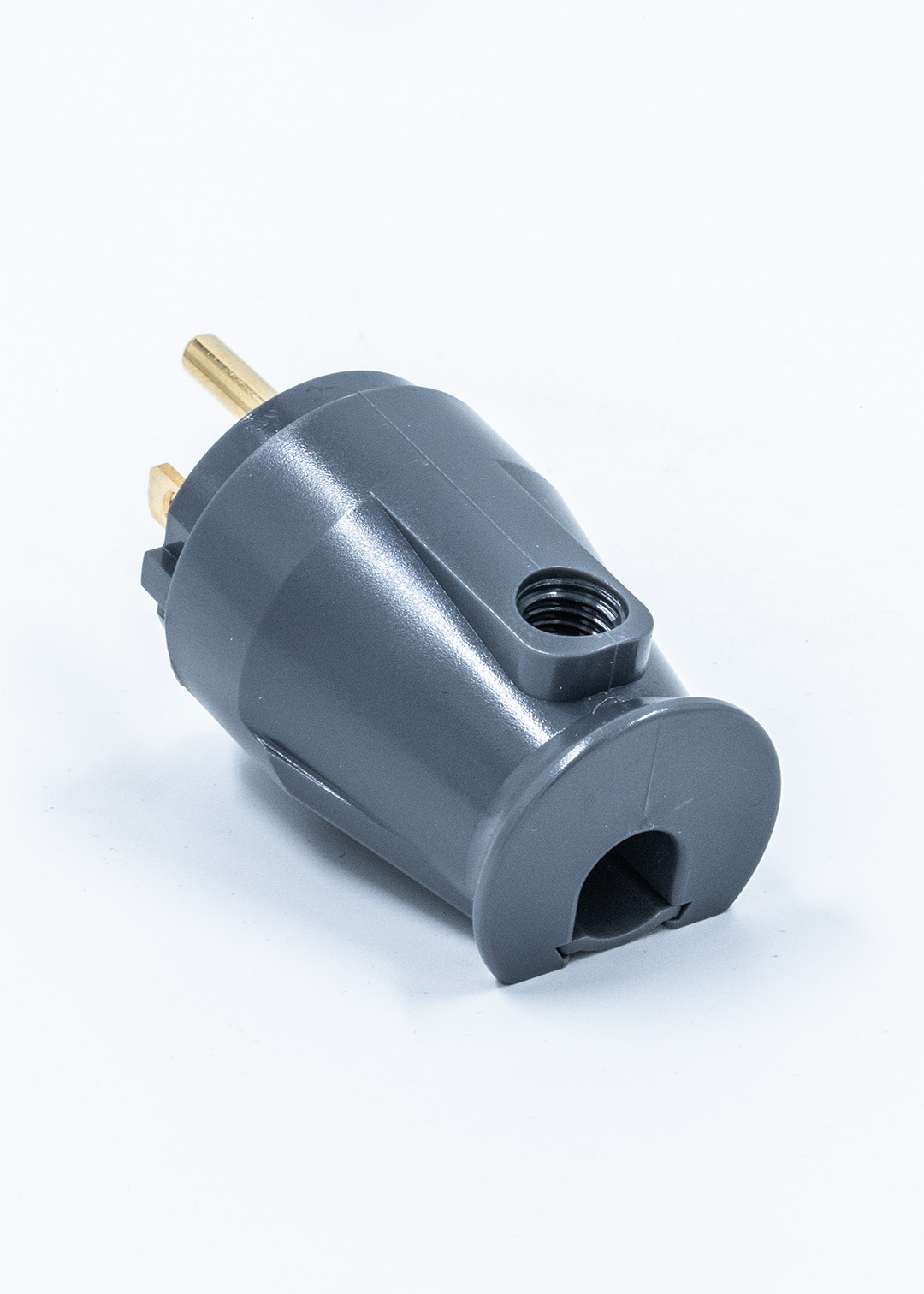

Supra SW-US – Premium Male NEMA Mains Plug

The Supra SW-US mains plug is engineered for hospital-grade and audio-grade applications, delivering a superior connection for high-end mains power cables like Supra LoRad. Designed to meet the NEMA 15 standard, this connector is perfect for American and Canadian systems, providing a robust, reliable, and interference-free power connection for audio-visual and other sensitive devices.

Crafted with precision, the SW-US plug features 24K gold-plated pins and screw clamps to ensure solid joints with minimal contact degradation, even after repeated connections. Its sturdy design accommodates cable diameters up to 11.5 mm and cable lead areas up to 4.0 mm² (AWG 11), making it versatile for a range of cable brands, and a perfect match for Supra LoRad power cables.

The patented housing integrates strain relief and eliminates the need for pre-mounting components, making assembly effortless. These features provide a long service life and a stable connection, essential for high-fidelity audio performance and reliable power delivery in critical applications.

Features & Benefits:

• Hospital & Audio Grade Certification: Designed for demanding professional and medical environments.
• 24K Gold-Plated Pins: Ensures excellent conductivity, durability, and resistance to corrosion.
• Integrated Strain Relief: Provides secure cable retention for stability and durability.
• Broad Compatibility: Supports cables up to Ø11.5 mm and conductors up to 4.0 mm².
• Easy Assembly: No pre-mounted shells required; quick and straightforward installation.
• Certified Reliability: Meets UL STD 498 requirements and tested by Intertek Sweden.

Technical Specifications:

• Standard: NEMA 15 / UL STD 498
• Plug Type: Straight male NEMA with ground connection
• Rated Voltage/Current: 125V / 15A
• Material: 24K gold-plated copper
• Max Cable Diameter: 11.5 mm
• Max Wire Area: 4.0 mm² (AWG 11)
• Insulation: UV-resistant polypropylene

Applications:

• Home Hi-Fi Systems: Ensure interference-free power for audio fidelity.
• Professional Studios: Reliable performance for sensitive equipment.
• Medical Equipment: Approved for hospital-grade use.
• Critical Control Systems: Ideal for environments like air traffic control towers, where interference is unacceptable.

Supra SW-US – Empower your performance with precision-engineered power connectivity.

Bulk Pack: Available in 50-piece packs for retail.
Single Pack: Blister packs available for individual purchases
