CombiCon BFA/Banana M6
Supra CombiCon Series – A versatile, robust series of contacts
The Supra CombiCon allows for changing contacts from BFA/banana to Fork in a blink of an eye. And back again for that matter, providing for exceptional freedom and flexibility for any future desires. Electrically, the Supra CombiCon matches any of our cables and the design specification was clear-cut, it must not be a bottleneck for our Supra Sword speaker cable. Rest assure, there are no any other contact, making a better job for Supra cables, even though competing contacts often are much more expensive.

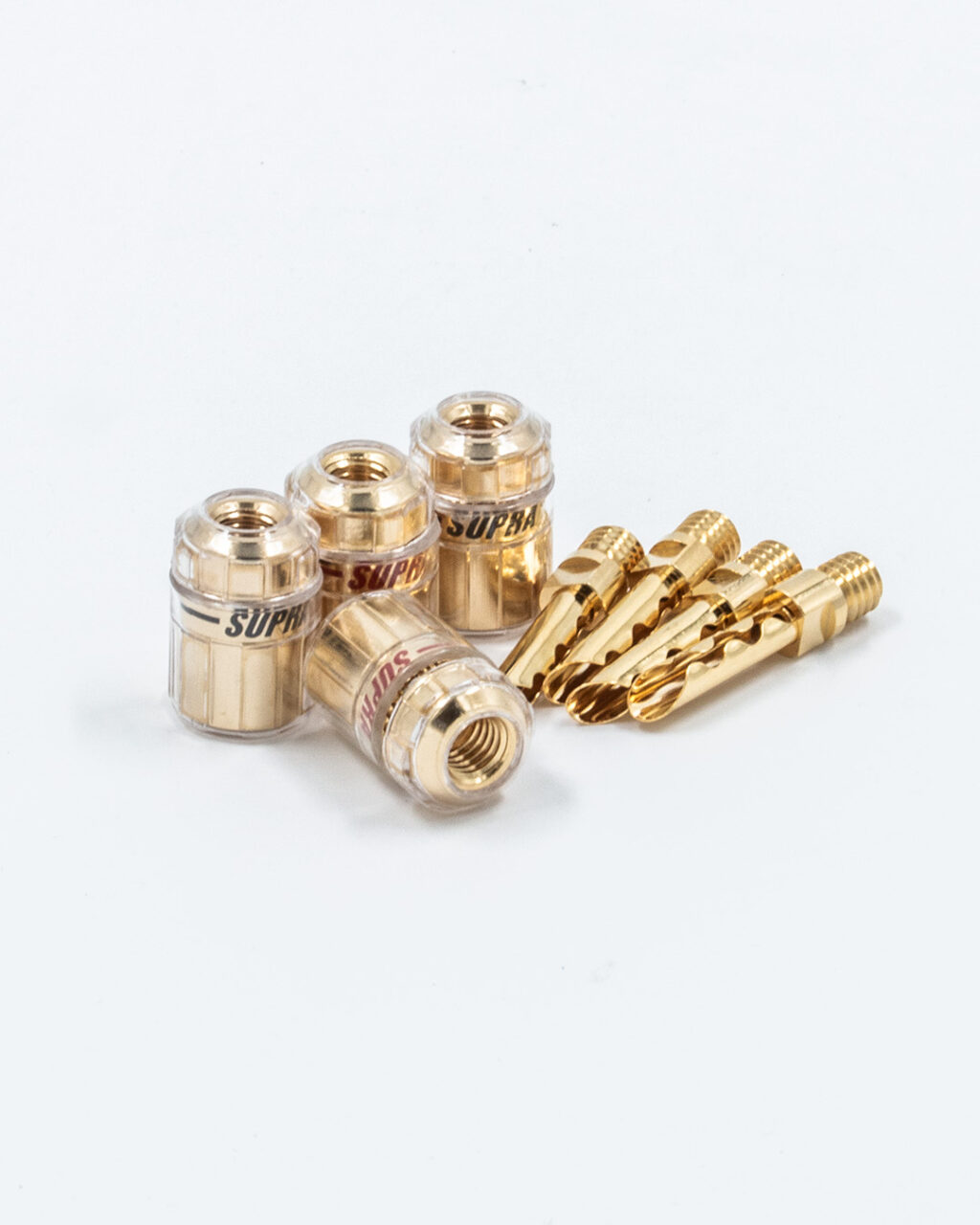

This combination connector comprises two parts: a connector body with a M6 thread that attach to the cable in two ways; straight or 90°, and contact part with M6 thread that fits the connector body. The contact part may be either the optional Fork, the BFA/Banana pin or a combination of both depending on access angle to the speaker terminal.
The Connector Body M6
The connector Body attach to the cable either straight or in 90° angle. Click the pictures above for better views. A speaker cable with fork connectors may also attach to the connector Body, often to achieve a different access angle of the connection to the speaker terminal. Printing in red and black, respectively, for polarity identification. The connector Body houses CombiCon BFA/banana or Fork in the M6 thread
The Contact Part M6
The BFA/Banana pin also fits BFA connectors. The optional Fork is angled for easier mounting in tight spaces and offers a two-step internal width to fit the vast majority of speaker terminals.
The BFA/Banana pin is reinforced and improved, now equipped with a key grip for a small spanner or a fixed 5 mm wrench and finally a larger M6 thread. The BFA/banana pin fits into CombiCon body M6 and CombiCon Crimp body M6.
| Brand | SUPRA |
|---|---|
| Product Type | Speaker Connector Banana |
| Connector Material | 24K gold plated Beryllium Copper, 24K gold plated brass with high copper content |

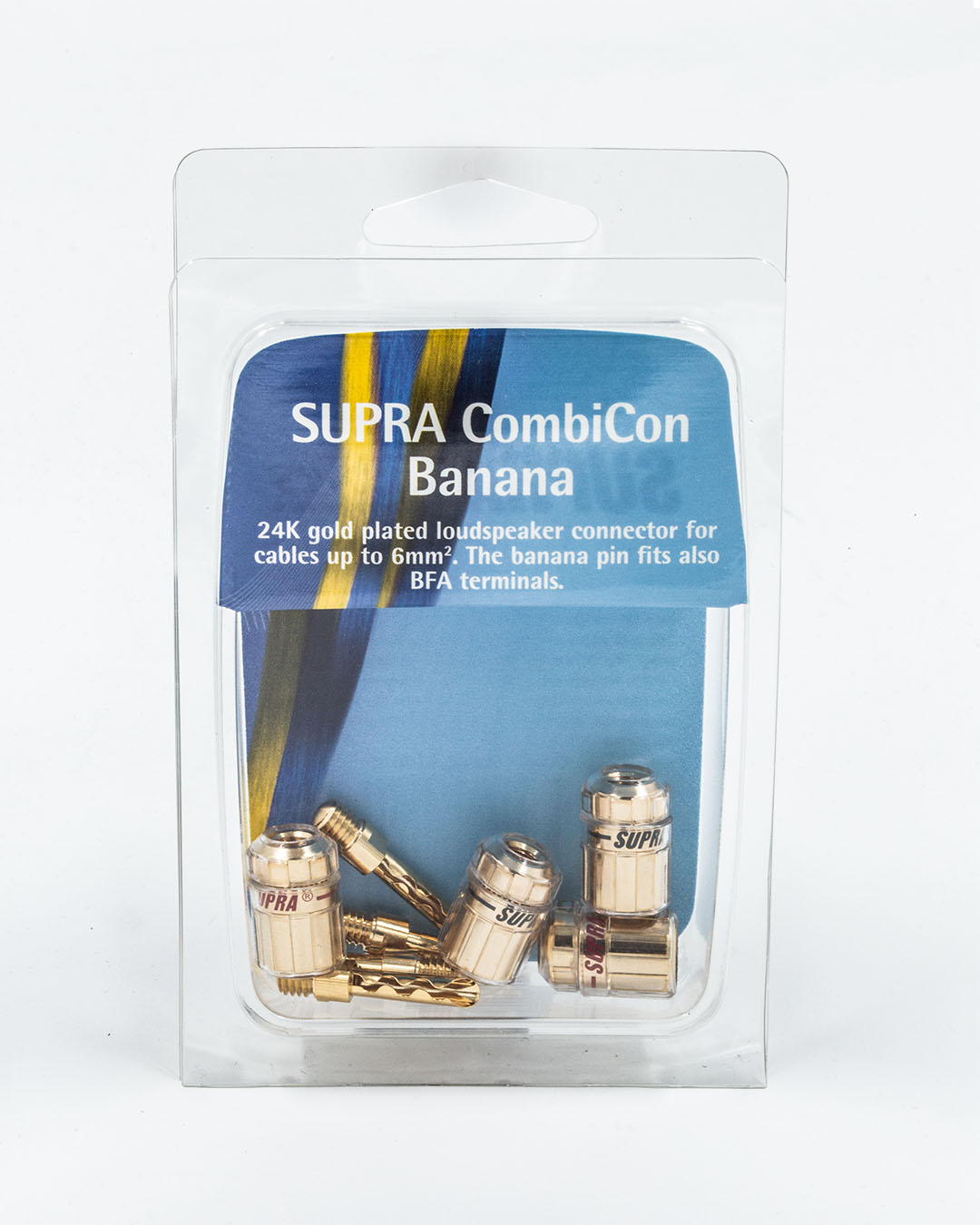

| Package | 1SET |
| Pin connection | M6 thread |
| Isolation | UV stabilized PP Transparent |
| Max cable area | 6.0mm2 / AWG 9 |
| Good-Better-Best | Best |
| Color | Transparent |
| Polarity Identification | Black, Red |
| Wire Connection | Threaded clamping force in Connector Body, straight or 90 Deg |
